Chimney Liner Brick Shapes

Chimney Liner Brick Shapes

All Belden Chemical Resistant Floor Brick are manufactured to conform to or exceed ASTM C980, and available in Type I or Typee II. Minimum requirements regarding the ASTM C980 specification standards are listed in the table below.

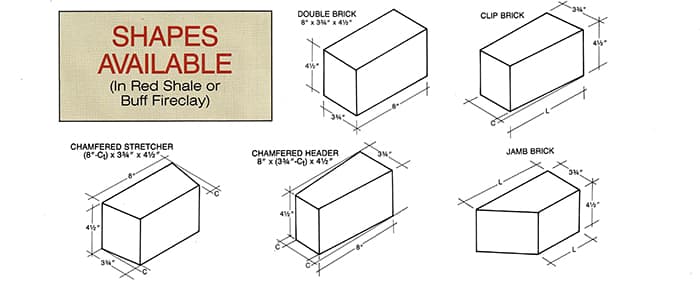

Note: Total Chamfer (Ct) equals 2 x Ct is available in 1/16" increments only. Dimension lines designated as 'C' can be custom manufactured to the size specified by the designer for any chimney liner diameter desired. Dimension lines designated as 'L' can be custom manufactured to the size required up to and including 8"

PropertiesTYPE ITYPE IIMethod of Test
Minimum Compressive Strenght Gross Area p.s.i.
(average of 10 brick)
8,50010,000ASTM Designation C67, Section 10
Water Absorption Maximum % by 2 hr. Boiling Test (average of 10 brick)6.04.0ASTM Designation C20, Section 10
Maximum Average Weight Loss by H2SO4 Boil Test %2012ASTM Designation C980 Section 6
Permissive Maximum Variation - Warpage Maximum Face and Diagonal Dimensions up to and incl. 9 1/2 in. (mm)1/8(3.0)1/8(3.0)ASTM Designation C67 Section 12
Maximum Permissible Variations in Dimensions Between Largest and Smallest Brick in a Random Sampling of 10 Brick, %  ASTM Designation C67 Section 11
Typical Physical Properties of Belden Shale and Fireclay Acid Resistant Brick Products
PropertyTest StandardRed ShaleBuff FireclayReference
Bulk Density, lbs./cu. ft. ASTM C20139-141145-148PSI (Professional Services Industries, Inc.)
Water Absorption %ASTM C203.14-3.463.22-3.55PSI (Professional Services Industries, Inc.)
Solubility in Sufuric acid. Loss in Mass %ASTM C9802.2-3.92.1-3.1PSI (Professional Services Industries, Inc.)
Apparent Porosity %ASTM C207.42-8.067.76-8.51PSI (Professional Services Industries, Inc.)
Apparent Specific Gravity, grams/ccASTM C202.54-2.552.61-2.62PSI (Professional Services Industries, Inc.)
Modulus of Rupture, p.s.i.ASTM C671900-35602210-2600PSI (Professional Services Industries, Inc.)
Compressive Strength, p.s.i.ASTM C6721,390-22,65021,060-23,600PSI (Professional Services Industries, Inc.)
Tensile Strength, p.s.i. ASTM C10063195-33901675-3285PSI (Professional Services Industries, Inc.)
Modulus of Elasticity, p.s.i.ASTM C8856.98-7.97x1066.68-6.84x106PSI (Professional Services Industries, Inc.)
Poisson's Ratio-.125-.193.125-.127PSI (Professional Services Industries, Inc.)
Coefficient of Expansion, in/in/°Fx10-6-4-5.52-3.5Corrosion and Chemically Resistant Masonry(1)
Thermal Conductivity BTU-in/hr.-ft.2-°FASTM C2367-96-10Corrosion and Chemically Resistant Masonry(1)
K Factor, BTU/sq. ft./in/hr.ASTM C17789Corrosion and Chemically Resistant Masonry(1)

(1) Corrosion and Chemically Resistant Masonry Materials Handbook by Walter Lee Sheppard, Jr., P.E.B. Chem., M.S. C.C.R.M., Inc., 1986

The information provided above has been furnished as a general guide-line for the design of corrosion resistant construction. We cannot guarantee the data reported nor can we assume any liability in connection with its use. Please contact The Belden Brick Company for specific recommendations.
