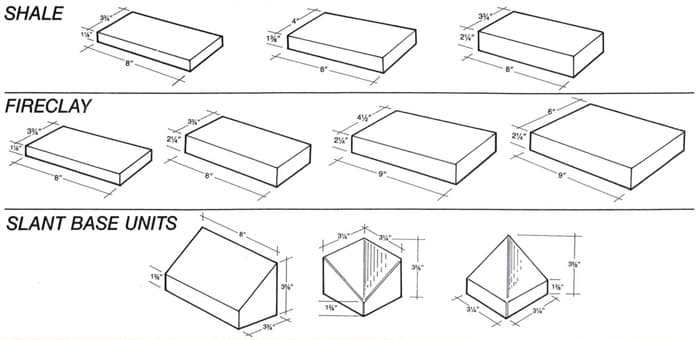

Floor Brick Types & Sizes

All Belden Chemical Resistant Floor Brick are manufactured to conform to or exceed ASTM C279, and are generally available in Type II designation. In some cases Type III are available. Minimum requirements regarding the ASTM C279 specification standards are shown in the following table:

Floor Brick Types & Sizes

PropertiesTYPE ITYPE IITYPE IIIMethod of Test
Modulus of
Rupture Minimum PSI
125012501250ASTM Designation C67
Water Absorption
Maximum % by 2 hr.
Boiling Test
6.0 - 7.0%4.0 - 5.0%1.0 - 1.5%ASTM Designation C20
H2SO4 Solubility
Maximum % &
Weight Loss
20128ASTM Designation C279
Size Variances+/- 3%+/- 3%+/- 3%ASTM Designation C67
Tolerances on
Warpage
8" & Under

Over 8" - 12", Incl.
Table 2
C279-88

Table 2
C279-88
Table 2
C279-88

Table 2
C279-88
Table 2
C279-88

Table 2
C279-88
ASTM Designation C67


ASTM Designation C67

The information provided above has been furnished as a general guide-line for the design of chemical resistant construction. We cannot guarantee the data reported nor can we assume any liability in connection with its use. Please contact The Belden Brick Company for specific recommendations.

Belden Chemical Resistant Floor Brick are manufactured to conform to the specification requirements of both ASTM C279 and ASTM C410 (industrial floor brick). Whenever close dimensional tolerances or minimal distortion is required, ASTM C410, Tables II and III should be used for the dimensional standards of the specification.

PHYSICAL AND CHEMICAL REQUIREMENTS
 Modulus of Rupture
(Brick or Tile Flatwise)
min. PSI (MPa)
Water Absorption
Maximum % by 2 hr.
Boiling Test
H2SO4 Solubility
Maximum %
Weight Loss
Designation

Average of 5
Brick or Tile
Low Individual
Average of 5
Brick or Tile
High Individual
Average of 5
Brick or Tile
Type I1250 (8.6) 1000 (6.9)6.0 7.020
Type II1250 (8.6) 1000 (6.9)4.0 5.012
Type II1250 (8.6) 1000 (6.9)1.0 1.58
PHYSICAL PROPERTIES & COMPARISON TABLE-VERTICAL FIBRE FLOOR BRICK
Technical DataBelden-Vertical Fibre
Floor Brick Type II
ASTM C279 TYPE II</td>ASTM C410 TYPE HFed. Spec.
SST-308B Class C
Max. Permissible
Variations in
Dimensions
(Largest to Smallest)
1/8"3% +/-3/16"-
Max. Permissible
Deviation of
Face Distortion (in.)
1/32"3/32"1/16"9/64"
Compression (PSI)(1)18,860NoneNoneNone
Modulus of Rupture (PSI)257012501000None
Coefficient of Expansion
in./in./°Fx10(6)
2.4 - 3.0NoneNoneNone
Tensile Strength (PSI)(2)3195 - 3390NoneNoneNone
Modulus of Elasticity
(PSI)(3)
6.48-7.97x10(6)NoneNoneNone
Absorption - 2 Hr. Boil3.9%6.0 Max.None5.0 Max.
Acid Solubility
(% of Loss)
(h2So4-48 Hr. Boil)
2.212.0 Max.20.0 Max.None
Tabor Abrasion
Wear Index(4)
83NoneNone25 Min.
Abrasion Resistance Index(5).0114NoneNoneNone
NOTES:
  1. Applicable Testing Specification Procedure - ASTM C67
  2. Applicable Testing Specification Procedure - ASTM C885
  3. Applicable Testing Specification Procedure - ASTM C1006
  4. Conforms Under Test Method - ASTM C501
  5. Conforms Under ASTM C904, Type I Material, Maximum = 0.11, Refer to Table No. 2 Titled "Abrasion Requirements". Belden Vertical Fibre Floor Brick has an abrasion resistance index almost 10 times greater than the most stringent requirement of this specification.
